Product Description:
JETEX AHU( air handling unit )draw on the advantages of world - renowned products from Europe, the United States, Japan and other regions. Combining the design characteristics and development trends of modern air conditioning systems, we have meticulously developed high - quality products to meet various needs.Our company has obtained the ISO9001 quality system certification.
The 5W and CBL series products are suitable for air conditioning systems in commercial buildings, hotels, auditoriums, theaters, large factories and other places. The products are widely sold in Hong Kong, Taiwan, Southeast Asia, Central Africa and all parts of the country.

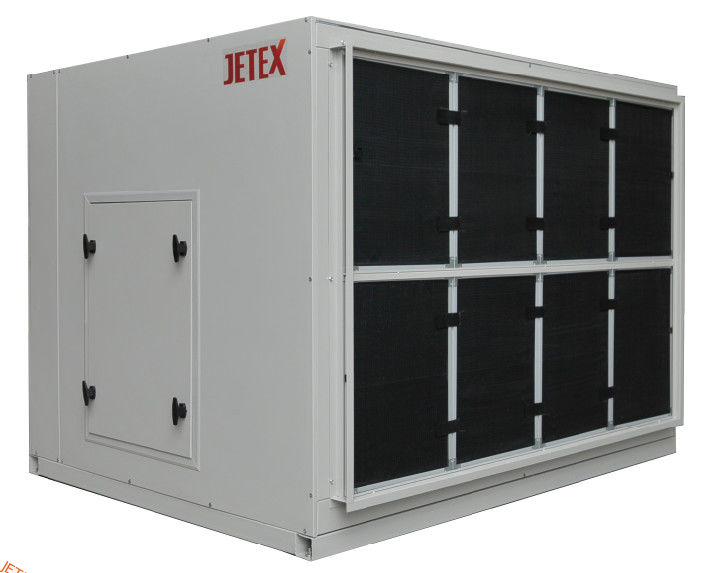

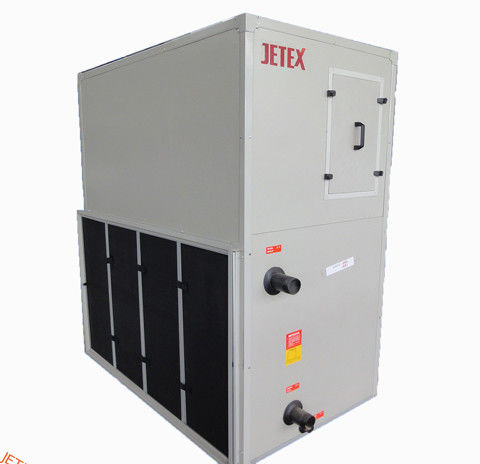

The Jetex Vertical air handling unit line of heating and cooling systems is a high quality, high performance, cost effective small air-handling unit designed specifically for tight applications.
Features:
Product Name: Vertical Air Handling Unit.
Wall Panel Type: Single - panel and double - panel.
Coil Row Number: 4 - rows, 6 - rows and 8 - rows.
Vibration Damper: Small Air Volume: Composite Rubber Shock Absorbers
Cooling/Hot Water Coil: Smooth Copper Tubes
Air Volume: 1500m³/h-100000m³/h
Type: Vertical
Access Door: Snap-fastened Access Door
Applications :
·
· 5WV Vertical Type: Installed in the air conditioning machine room for convenient maintenance.
· Industries :
Electronic Chips ,Lithium Battery,Commercial Buildings,Hotels,Shopping Malls ,etc.
5WH Vertical AHU Performance Data (4 rows)
序号
No. |
产品名称 Product Name |
型 号Model |
风量
(m3/h) |
余压
(Pa) |
4 rows |
| 回风工况(RA confition) |
新风工况(FA confition) |
| 冷量Cooling capacity(Kw) |
冷量Cooling capacity(Ton) |
冷量Cooling capacity(Kw) |
冷量Cooling capacity(Ton) |
| 1 |
立式空调风柜
Vertical type AHU |
5WV-20 |
2000 |
250 |
11.36 |
3.23 |
24.15 |
6.87 |
| 2 |
5WV-25 |
2500 |
300 |
14.20 |
4.04 |
30.19 |
8.59 |
| 3 |
5WV-30 |
3000 |
350 |
16.81 |
4.78 |
35.74 |
10.16 |
| 4 |
5WV-35 |
3500 |
350 |
19.88 |
5.65 |
42.26 |
12.02 |
| 5 |
5WV-40 |
4000 |
350 |
22.72 |
6.46 |
48.30 |
13.74 |
| 6 |
5WV-45 |
4500 |
350 |
25.56 |
7.27 |
54.34 |
15.45 |
| 7 |
5WV-50 |
5000 |
350 |
28.40 |
8.08 |
60.38 |
17.17 |
| 8 |
5WV-60 |
6000 |
350 |
34.08 |
9.69 |
72.45 |
20.60 |
| 9 |
5WV-70 |
7000 |
400 |
39.76 |
11.31 |
84.53 |
24.04 |
| 10 |
5WV-80 |
8000 |
400 |
45.44 |
12.92 |
96.61 |
27.48 |
| 11 |
5WV-90 |
9000 |
400 |
55.00 |
15.64 |
116.93 |
33.25 |
| 12 |
5WV-100 |
10000 |
400 |
60.20 |
17.12 |
132.00 |
37.54 |
| 13 |
5WV-120 |
12000 |
450 |
70.20 |
19.96 |
149.25 |
42.45 |
| 14 |
5WV-140 |
14000 |
450 |
81.90 |
23.29 |
174.12 |
49.52 |
For product parameters of larger air volume, please contact our company online sales .
The specification parameters may be changed due to product improvement without prior notice. Please refer to the actual parameters of the unit.
Quality Assurance
All products of our company are strictly inspected before leaving the factory. From raw materials to finished products, each process is inspected by special personnel. The factory is equipped with a fully automatic computer detection system to ensure the reliability and accuracy of product performance.
Customization:
Product Customization Services for the Air Handling Units
Brand Name: JETEX
Model Number: 5WV 20-600
Place Of Origin: Guangdong, Panyu
Certification: ISO 9001:2015 Certification
Minimum Order Quantity: 1
Price: From $440
Packaging Details: Wooden Pallet With Outer Film Wrapping
Delivery Time: 25~30 Days
Payment Terms: For Customized Product, 30% Deposit Required, 70% Balance Payable Prior To Shipment
Supply Ability: 1000+
Construction:
Outer Panel: 0.5mm Color-coated Steel Sheet
Inner Panel: 0.5mm Galvanized Steel Sheet
Polyurethane Foam Insulation Thickness: 25mm
Packaging: Wooden Pallet With Outer Film Wrapping
Fan: Brand Fan.
Vibration Damper: Small Air Volume: Composite Rubber Shock Absorbers
Base Frame: Welded Base Frame Made Of Galvanized Channel Steel Or Galvanized Steel Profile.
Packing and Shipping:
Product Packaging for Air Handling Units:Wooden pallet with outer film wrapping
Once your order is placed, our team will process it quickly and efficiently. The air handling units will be shipped via a reliable carrier to ensure timely delivery to your specified address. You will receive a tracking number to monitor the status of your shipment.
FAQ:
Q: What is the brand name of the Air Handling Units?
JETEX
Q: What is the model number of the Air Handling Units?
5WV20-100
Q: Where is the Air Handling Units manufactured?
Guangdong, Panyu
Q: What certification does the Air Handling Units have?
ISO 9001:2015 Certification
Q: What is the minimum order quantity for the Air Handling Units?
1
